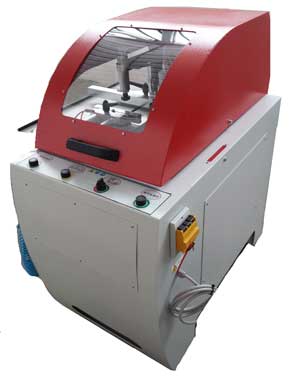

TECHNICAL DATA MODEL IT220M:
End milling machine with manual cutter-head feed for
alluminium/pvc.Profile support can be pivoted at +45°/90°/-
45°and intermediate.Equipped with spindle at 2800rpm
Axis movement on linear guides.Full protection with carter. Stroke
380mm.
Very fast tool change group.Maximum diameter of tool 220mm
Dimensions: 600x1050x1120mm
TECHNICAL DATA IT220A / IT220I:
End milling machine with automatic cutter-head feed for
alluminium/pvc.Profile support can be pivoted at +45°/90°/-
45°and intermediate.Spindle from 2800rpm to 7000rpm managed
by inverter and potentiometer on board.(only for IT220I)
Axis movement on linear guides.Full protection with carter. Stroke
380mm.
with useful stroke 390mm. Max cutter diameter 220mm.
Threephase motor 2,5HP.Very fast tool change group. Maximum
diameter of tool 220mm
Dimensions: 600x1050x1120mm
STANDARD EQUIPMENT:
N.6 position revolving turret stop for depht setting
Lubrication Venturi
Air gun and air filter
OPTIONAL ACCESSORIES:
Cutter block and tool on demand
emulsified cutting oil 20 lt.
