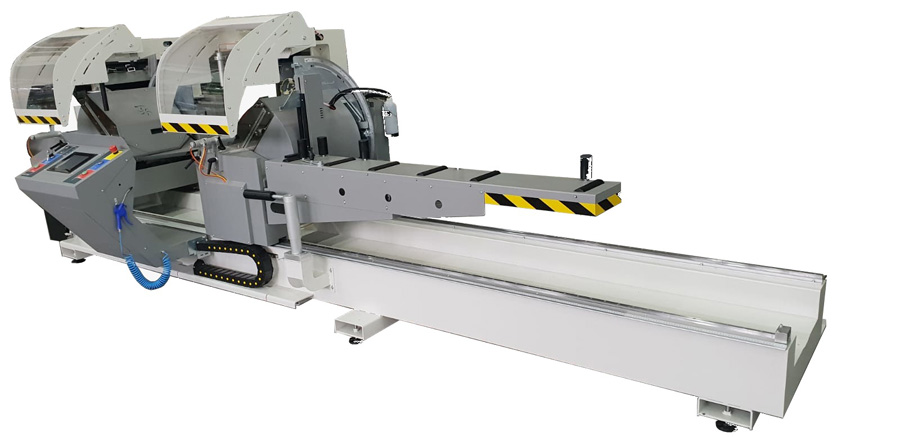

TECHNICAL DATA MODEL TD520/550A:
Double head cutting-off machine with hydropneumatic saw inclination at 90°/22,5° and intermediate degree
Automatic blade feeding with oilpneumatic system for cut aluminium/pvc profile. Axis X controlled with cnc
Blade Ø520/550mm.
Motor triphase 2,5hp 2800rpm
cnc touch screen
Function :semiautomatic cut,incremental cut ,cutting list,usb
Dimensions:1200x5000x1600mm(4 mt useful)
Avaible version cutting useful 4/5/6 meter

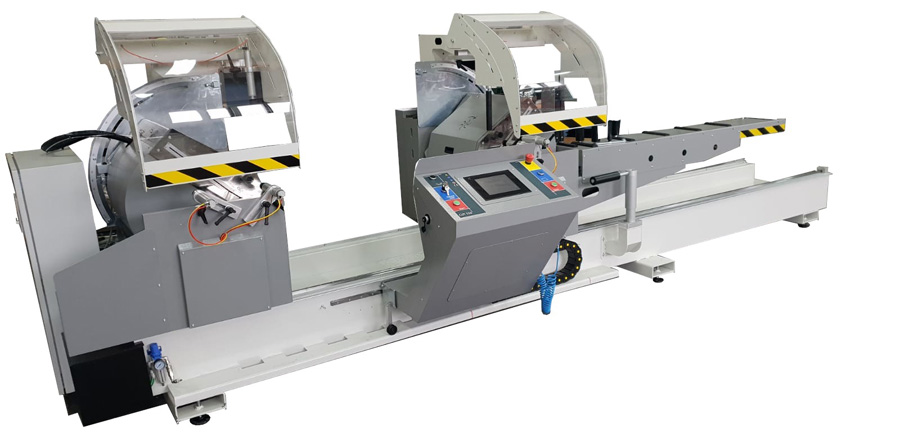

TECHNICAL DATA MODEL TD520/550ARV:
Double head cutting-off machine with hydropneumatic saw inclination at 45°/90°/135° and intermediate degree
Automatic blade feeding with oilpneumatic system for cut aluminium/pvc profile. Axis X controlled with cnc
Blade Ø520/550mm.
Motor triphase 2,5hp 2800rpm
cnc touch screen
Function :semiautomatic cut,incremental cut ,cutting list,usb
Dimensions:1200x5000x1600mm(4 mt useful)
Avaible version cutting useful 4/5/6 meter

STANDARD EQUIPMENT:
Lubrication Venturi
Air gun and air filter

OPTIONAL ACCESSORIES:
Single phase motor
N.2 kit vertical pneumatic clamps
digital measure profile
print
ber code
pneumatic intermediate support
useful cutting lenght 5 or 6 meter
windows cnc
