TECHNICAL DATA MODEL TD450M:
Cutting-off machine,double-head,hydropneumatic with disappearance saw, automatic inclination and automatic feed for carry out at 90°/22,5° and intermediate, on aluminium/pvc profile.
Blade Ø450mm. Motor triphase 2,5hp 2800rpm
Movement of the mobile head by handle and visualization of value on a digital display. Working pressure 7atm
Dimensions:1200x5000x1600mm(4 mt useful)
Avaible version cutting useful 4/5/6 meter

TECHNICAL DATA MODEL TD450A:
Cutting-off machine,double-head, hydropneumatic with disappearance saw, automatic inclination and automatic feed for carry out at 90°/22,5° and intermediate, on aluminium/pvc profile.
Blade Ø450mm.Motor triphase 2,5hp 2800rpm

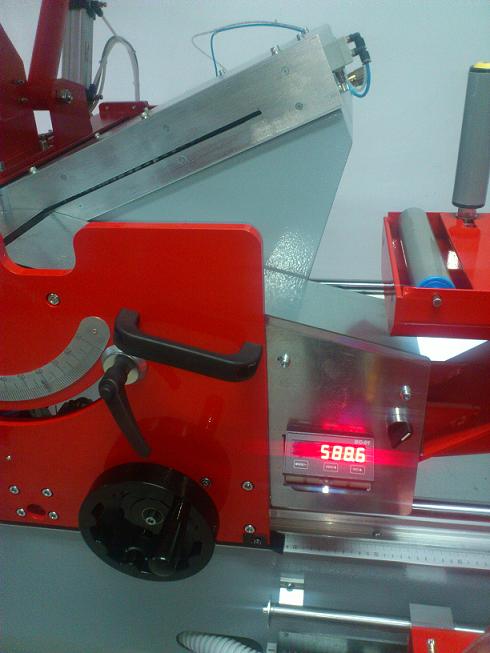

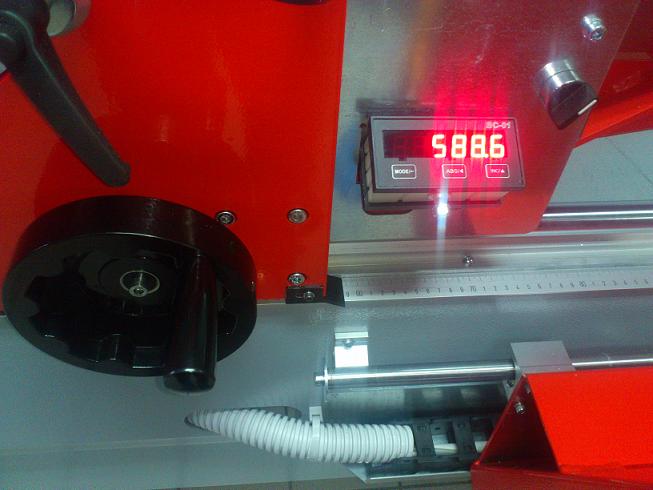

Movement of the mobile head with plc digital display.
Working pressure 7atm
Dimensions:1200x5000x1600mm(4 mt useful)
Avaible version cutting useful 4/5/6 meter

TECHNICAL DATA MODEL TD450RV:
Cutting-off machine,double-head,hydropneumatic with disappearance saw, automatic inclination and automatic feed for carry out at 45°/90°/135° and intermediate, on aluminium/pvc profile.
Blade Ø450mm.Motor triphase 2,5hp 2800rpm Movement of the mobile head with plc digital display.
Working pressure 7atm
Dimensions:1200x5000x1600mm(4 mt useful)
Avaible version cutting useful 4/5/6 meter

STANDARD EQUIPMENT:
Lubrication Venturi
Air gun and air filter

OPTIONAL ACCESSORIES:
Single phase motor
N.2 kit vertical pneumatic clamps
